Enhance your product line’s efficiency using E-M-A Checkweighers from our partner Wipotec. Achieve optimal results with high speed and precise check weighing.
The E-M-A series of checkweighers in our product portfolio delivers exceptional accuracy at fast speeds, enabling significantly higher throughputs and boosting overall line efficiency.
These checkweighers find typical applications in preventing underfilling and overfilling, which ensures brand protection and reduces costs by minimizing product giveaway. Additionally, their user-friendly design and intuitive operation contribute to quick familiarization and trouble-free usage, providing additional benefits.
Discover Wipotec CATCHWEIGHERS, valued by leading logistics companies for providing maximised capacity planning and utilisation.
Your benefits from the E-M-A series Wipotec Checkweighers
Wipotec EMFR weigh cells generate throughputs of up to 650 pcs/min
Modularity for tailor-made applications
Exact filling results reducing the TCO
Easy, user-friendly operation
GMP conformity and hygienic design
Download the case study: Quality control of Catalan sausages with checkweighers. The introduction of the automated EC-E checkweighing systems played a key role in process optimization and set the quality to a new high.

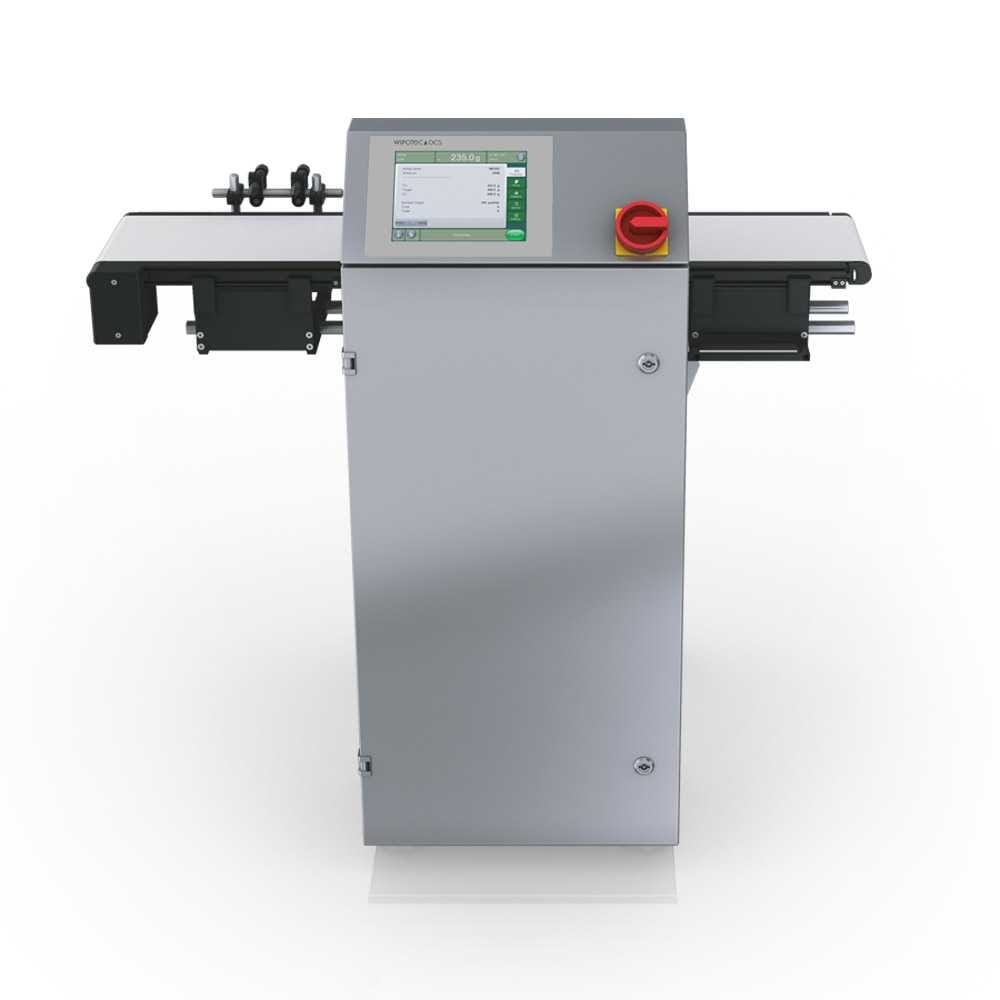

Checkweigher Wipotec EC-E: SIMPLE APPLICATIONS, OPTIMAL PRICE-PERFORMANCE RATIO
Entry-level machine
Despite its price positioning, offers high quality
Throughputs of up to 150 pcs/min
Compact design – big performance
Reliability and transparency of production data are the basis of all planning. The EC-E checkweigher from Wipotec guarantees 100% data capture in ongoing production.
Capable of 150 weight values per minute, the EC-E is the right choice for you. The intuitive user interface ensures convenient operation via a clearly structured, 8-inch colour touchscreen.
The EC-E checkweigher precisely weighs each individual product, records individual values, and ejects incorrect weight packages via the fully automated sorter. Your data is correctly and completely collected and you have the certainty that only factory compliant products leave your production halls.
The checkweighers ease of use virtually excludes all incorrect entries.
Key Features
Stainless steel cabinet with integrated control system
Maintenance-free servo drives
Line synchronisation with potential-free switching contacts/binary signals
Extensive statistical functions/histograms
Your Benefits
High throughput rate of up to 150 ppm
Precise and reliable weighing results to increase plant efficiency
Very good price-performance ratio
Requirements-based modularity for the greatest flexibility
Download data sheet:
Cantarul de control in flux Wipotec HC-M, design cu doua benzi:
Checkweigher HC-M: HIGH PERFORMANCE IN MIDRANGE APPLICATION AREAS
High performance in the medium application range
Our best-selling product worldwide
100% product monitoring as per the Prepackage directive
Available as a Wash-Down variant in IP69k
Throughputs of up to 250 pcs/min
The dynamic checkweighers of the HC-M series provide the perfect weighing technology for challenging medium-range checkweighing applications. They are the link to the series EC-E and HC-A scales and provide up to 250 weight values per minute for the complete medium range.
The HC-M is the most convenient answer, whether you need to check the current actual weight or perform a completeness check, or a sort, or a classification. The base frame is made of solid stainless steel and enables high precision weight determination at average to high conveyor speeds or throughput rates and provides 100% product checks in accordance with national prepackage regulations.
The lightweight, patented conveyor system and carefully tuned drive concept ensure smooth, fast and safe transport. A sophisticated and wide range of sorters (pusher, air blast, etc.) are available for there liable ejection of products having an incorrect weight, without interfering with the production.
Key Features
Entire machine in stainless steel housing with infeed, weighing, and outfeed belts
Wipotec EMFR Weigh Cells
Your Benefits
Max output 250 ppm
Exact fill results for higher productivity
Download Data Sheet
Checkweigher Wipotec HC-A: HIGH END UNIT FOR THE BROADEST RANGE OF APPLICATIONS
The flagship of the Wipotec checkweighers
Highest reliability, precision and speed
Limitless modularity and customization
Excellently suited to complex multiple-lane applications
Ultra-fast weighing of very lightweight products
Throughputs of up to 650 pcs/min
For the Highest Standards in Dynamic Weighing
In terms of precision and throughput, checkweighers of the HC-A series are the logical response to meet the demands of modern, dynamic weighing technology. The machines provide the controls and engineering to create the ideal platform for implementing complex regulation and control tasks. The HC-A is the basis for high-end application-oriented systems that provide a maximum of 600 values per minute with 100% product monitoring.
Key Features
Wipotec EMFR Weigh Cells
Flexible integration in production lines
Available as a multi-lane version
Your Benefits
Max output 650 ppm
Exact fill results for highest productivity
This model significantly extends the application possibilities of the Wipotec product line and completes our versatile product range, especially for high-end applications. In particular, the advanced solid stainless steel frame ensures extremely accurate weighing results at very high transport speeds or throughput rates. The modular design facilitates the implementation of custom solutions for a variety of product geometries and forms.
The sophisticated and wide selection of sorters (pusher, air blast, etc.) is designed to reliably eject products with incorrect weights with respect to packaging. The HC-A is characterised by its comprehensive product handling. For example, the top runner belts safely perform acceptance and acceleration of folded cartons just as the metering screw and lateral pressure belts safely separate and accelerate vials and bottles. The HC-A supports your efforts to minimise costly overfilling with a number of optional functions.
Download Data Sheet:
Metal Detector in combination with checkweighers
Download the brochure:
HC-M-MDi Weighing and metal detection integrated into one unit
If high precision weighing of your products is not enough and you require an additional reliable inspection formetallic impurities, you need the HC-M-MDi.
This machine is a high-tech combination scale and metal detector, together in one compact unit that sets the quality standard in terms of product safety.
The entire system is controlled via the menu-driven, user-friendly controls of the checkweigher. The central control point conveniently manages the product parameters, protocols, and production statistics. Naturally, you will find all of the conventional performance characteristics of metal detectors (for example, product tracking, compensating for the product effect, FPV compliance checks, etc.), provided in the HC-M-MDi. This model is a high-precision weighing instrument and fully integrated metal detector all in one compact unit.
Key Features
User friendly interface via one HMI
Separate sort out metal/weight
Flexible integration in production lines
Your Benefits
Conveyor belt in stainless steel (optional) for highest flexibility
Fully integrated metal detector for extensive control.
Download data sheet:
HC-A-MDi Weighing and metal detection for maximum product safety
The HC-A-MDi model is synonymous with high precision weighing in combination with extremely sensitivemetal detection for optimal performance. It is a practical combination of inspection technologies in the interests of increased consumer safety and provides scales and metal detector in one space-saving unit, which can beoperated from one HMI and easily integrated as part of any line.
The use of high-tech Weigh Cells from Wipotec, which operate according to the principle of Electro-Magnetic Force Restoration (EMFR), guarantees optimal weighing results with the best technology.
Key Features
Easy operation of both inspection units via one HMI
Extensive statistical functions/histograms
Your Benefits
Integrated metal detection for extensive control
EMFR Weigh Cell for precise weighing results
Download data sheet:

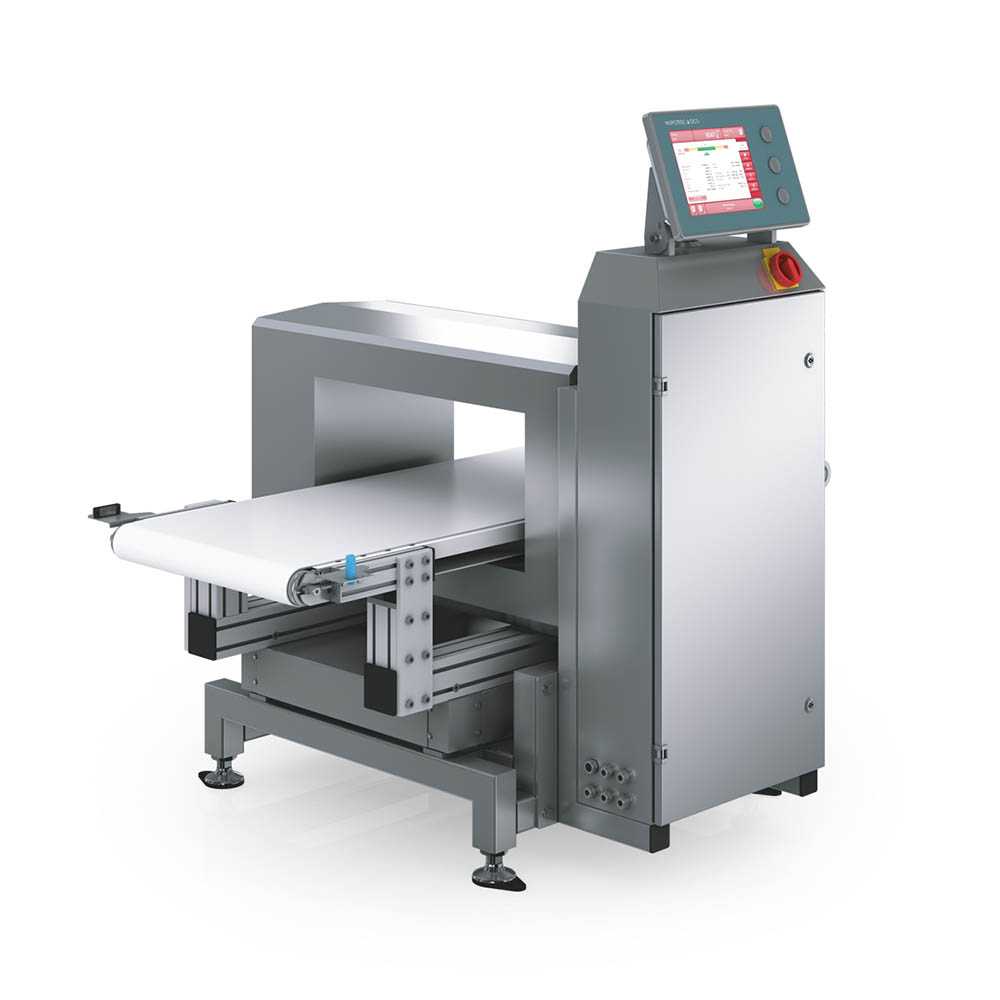

HC-M-MDi-SL The robust combination for the heavy-duty area
This machine is for heavy load and a high-tech combination scale and metal detector, together in one compact unit that sets the quality standard in terms of product safety.
The entire system is controlled via the menu-driven, user-friendly controls of the checkweigher. The central controlpoint conveniently manages the product parameters, protocols, and production statistics.
Key Features
User friendly interface via one HMI
Separate sort out metal/weight
Your Benefits
EMFR Weigh Cell for precise weighing results
Fully integrated metal detector for maximum control of your heavy load.
Naturally, you will find all of the conventional performance characteristicsof metal detectors (for example, product tracking, compensating for the product effect, FPV compliance checks, etc.), provided in the HC-M-MDi. This model is a high-precision weighing instrument and fully integrated metal detector all in one compact unit.
The use of high-tech Weigh Cells from Wipotec, which operate according to the principle of Electro-Magnetic Force Restoration (EMFR), guarantees optimal weighing results with the best technology
Download data sheet:

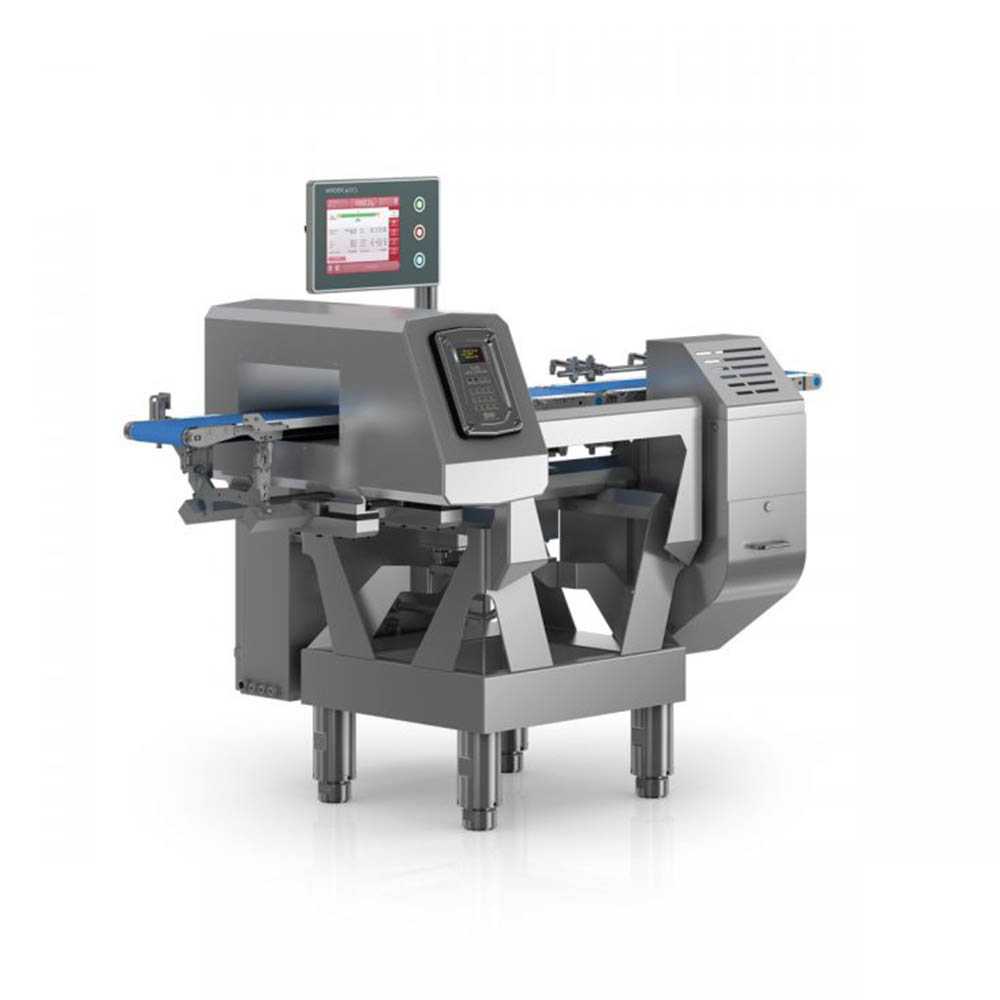

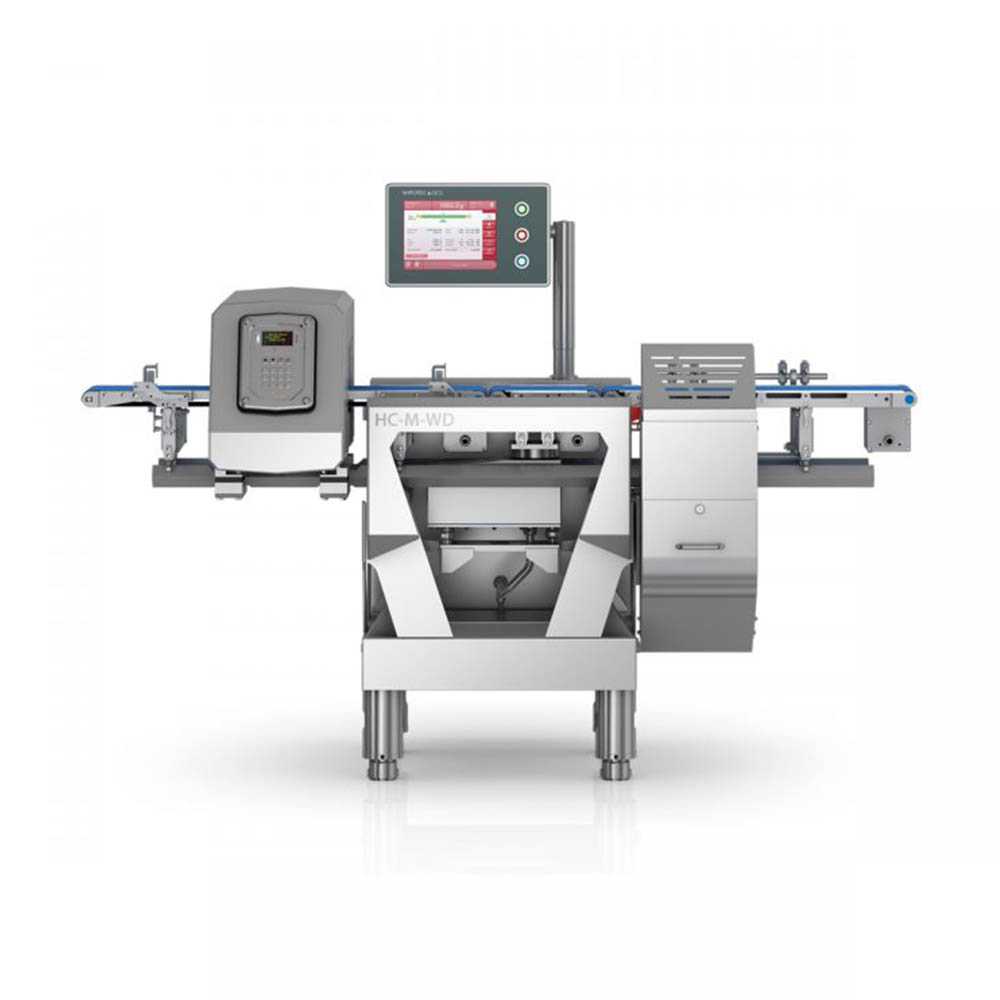

HC-M-WD-MDi Weighing and detection with the highest hygiene requirements
Wipotec provides a reliable and robust combination of checkweigher and metal detection in an innovative, hygienic Wash Down design. This model meets all statutory provisions for the food processing industry like IFS-compliant product control, and HACCP or LMHV/FDA (Food Hygiene Regulations).
An optional cleaning program package enables risk-free cleaning while in operation. This model is a high-precision weighing instrument and fully integrated metal detector all in one compact unit.
The use of high-tech Weigh Cells from Wipotec, which operate according to the principle of Electro-Magnetic Force Restoration (EMFR), guarantees optimal weighing results with the best technology.
Key Features
Solid and hygienic stainless steel construction
Protection class for all components
Your Benefits
Fully integrated metal detection for maximum control
Optional cleaning program for highest hygiene and efficiency
Download data sheet:
Checkweigher with highest hygiene requirements
Wipotec checkweighers meet the strict hygiene requirements of the food industry. Our units are manufactured from stainless steel and, if necessary, equipped with degrees of protection up to IP 69K.
The robust construction as well as the hygienic design of the devices emphasise the suitability for areas with frequent, intensive cleaning cycles. Thanks to these outstanding features, our checkweigher increase productivity every day with many renowned customers from different industries worldwide.

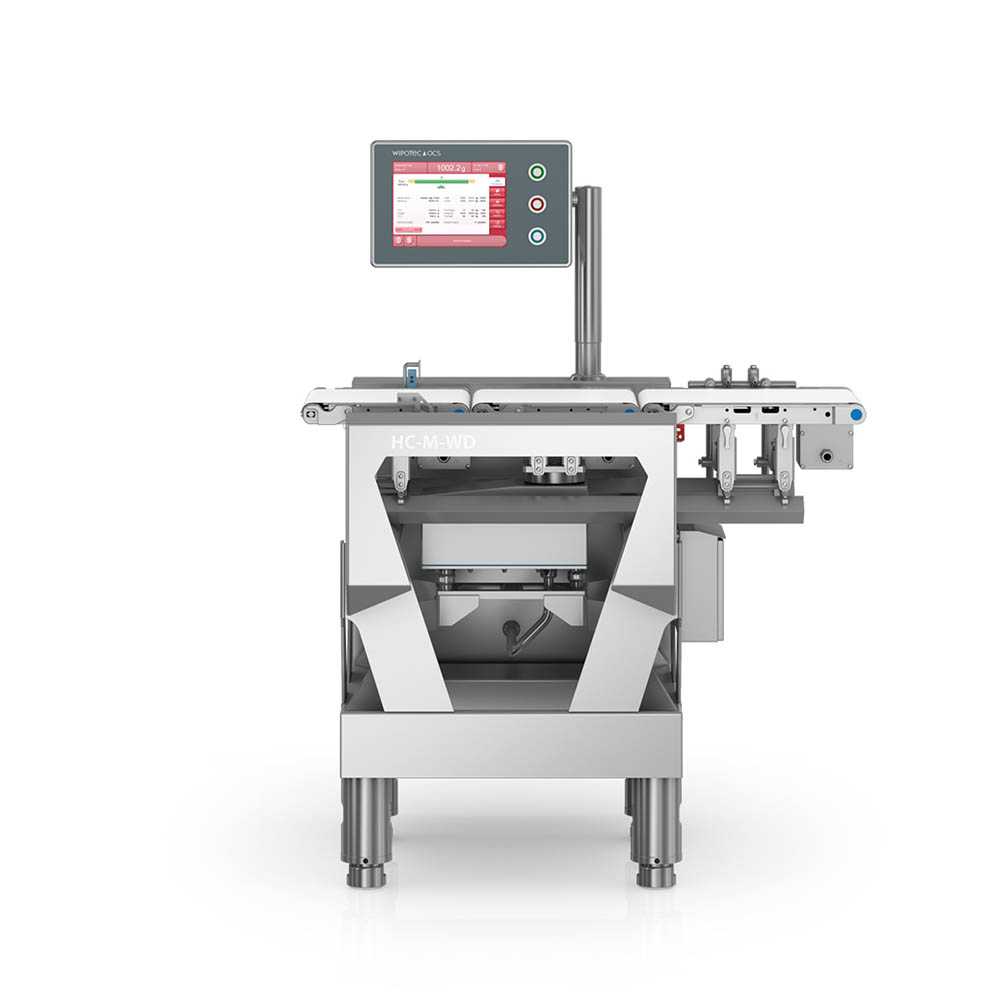

HC-M-WD - Checkweigher to meet the highest hygiene standards
The HC-M-WD from Wipotec provides a reliable and robust checkweigher in an innovative, hygienic washdown design. This model meets all statutory provisions for the food processing industry like IFS-compliant product control, and HACCP or LMHV/FDA (Food Hygiene Regulations).
Key Features
Solid and hygienic stainless steel construction
Protection class IP 69K for all components
Your Benefits
Compact design for easy Integration
Cleaning mode (optional) for highest hygiene and efficiency
Wipotec developed these dynamic checkweighers, which deliver outstanding values in terms of precision and throughput, to be maintenance-free, with stainless servo motors for use in operations with intensive and frequent cleanings.
The well-designed performance features of the HC-M-WD model satisfy all cleaning criteria and the most stringent hygienic requirements of the food industry. An optional cleaning program package enables risk-free cleaning while in operation. The stainless steel design of the precision Weigh Cell by Wipotec with sloping housing and separate base for a vibration-free integration in the machine frame ensures reliable and highly precise results.
Download data sheet:

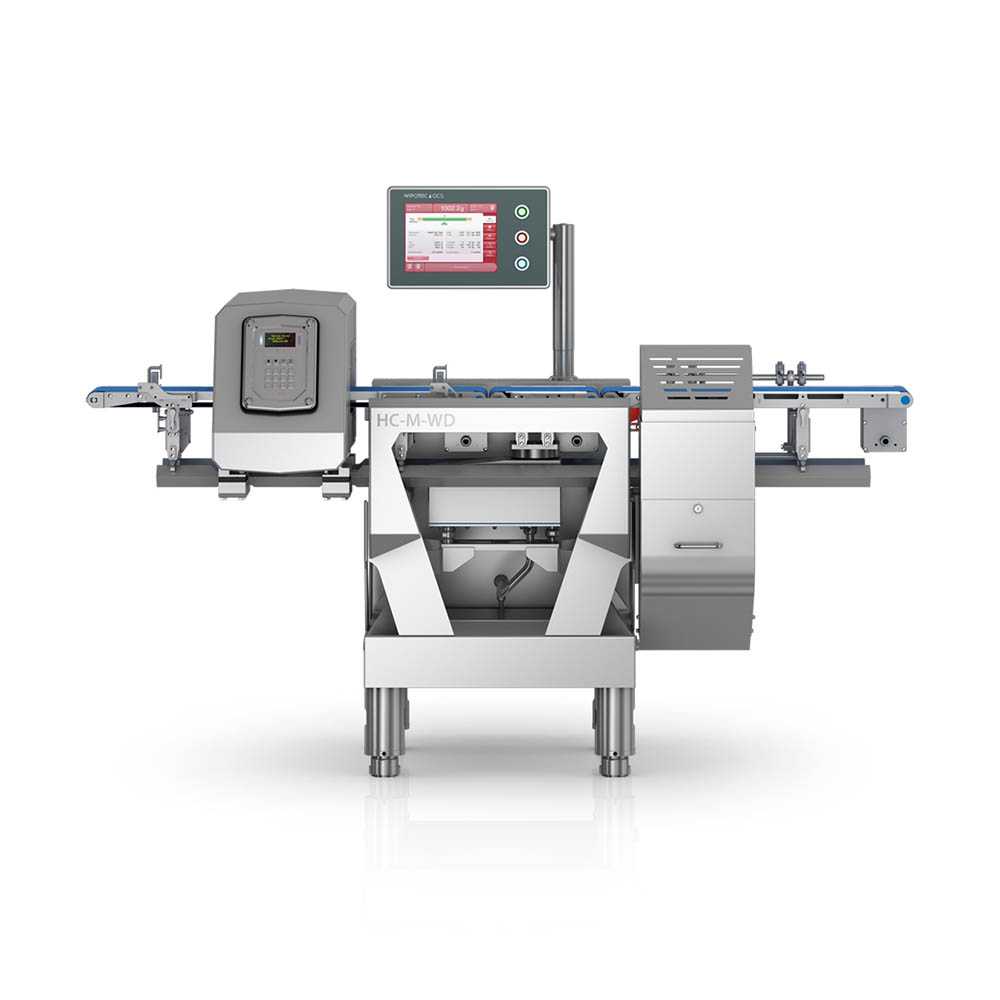

HC-M-WD-MDi - Weighing and metal detection at highest hygiene requirements
Wipotec provides a reliable and robust combination of checkweigher and metal detection in an innovative, hygienic Wash Down design. This model meets all statutory provisions for the food processing industry like IFS-compliant product control, and HACCP or LMHV/FDA (Food Hygiene Regulations).
An optional cleaning program package enables risk-free cleaning while in operation. This model is ahigh-precision weighing instrument and fully integrated metal detector all in one compact unit.
The use of high-tech Weigh Cells from Wipotec, which operate according to the principle of Electro-Magnetic Force Restoration (EMFR), guarantees optimal weighing results with the best technology.
Key Features
Solid and hygienic stainless steel construction
Protection class for all components
Your Benefits
Fully integrated metal detection for maximum control
Optional cleaning program for the highest hygiene and efficiency
Download Data Sheet:

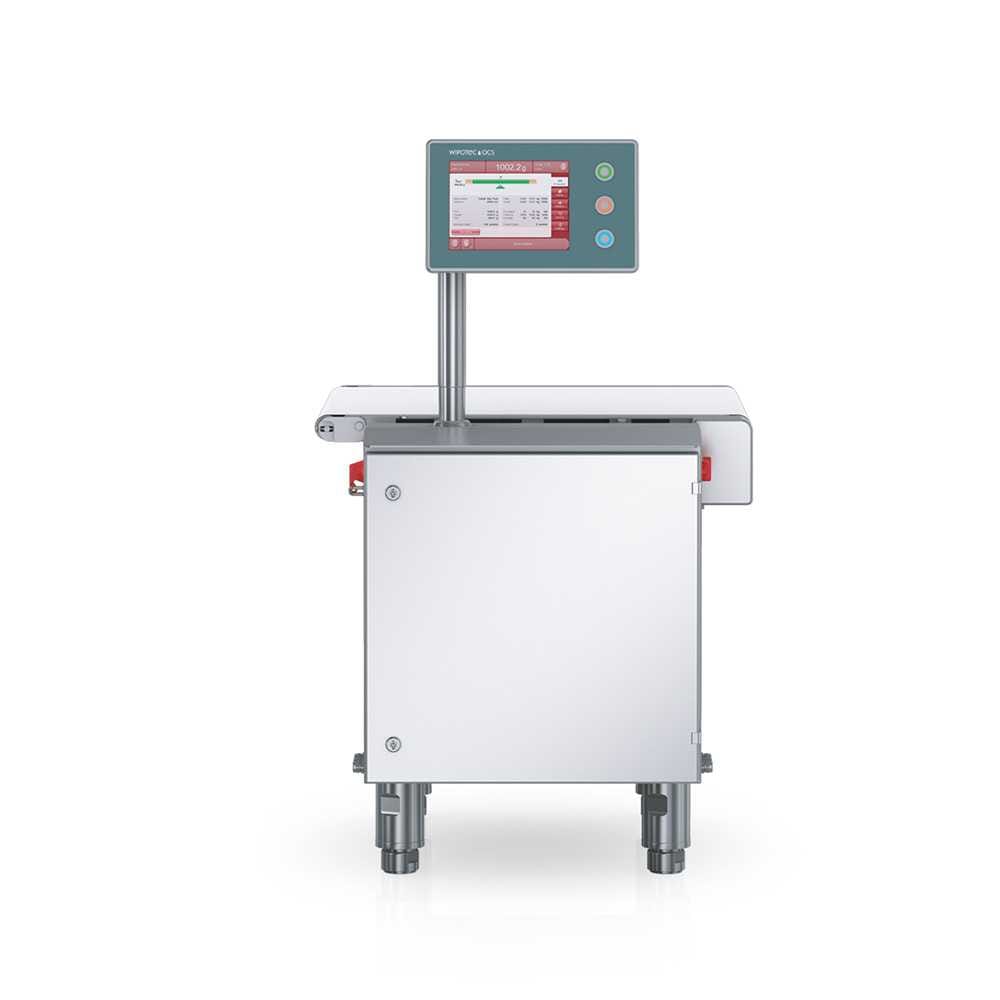

HC-M-WD-SL - Wash-Down checkweigher for heavy duty applications
The HC-WD-SL is the ideal checkweigher when it comes to weighing larger products such as crates, boxes, bags and containers in wet and areas of frequent and intensive cleaning.
An innovative hygienic design complies with regulatory provisions and, furthermore, provides the highest possible protection (IP 69K). Designed as a mono-checkweigher, the HC-WD-SL can be optionally equipped with an infeed and/or outfeed conveyor (with or without a rejection system).
The use of high-tech Weigh Cells from Wipotec, which operate according to the principle of Electro-Magnetic Force Restoration (EMFR), guarantees optimal weighing results with the best technology.
Key Features
Gross Weighing Range (GWR): 30 kg
Weighing conveyor in stainless steel
Your Benefits
Protection class: IP 69K for highest hygiene
EMFR Weigh Cell for optimal weighing results
Download Data Sheet
Pharma Checkweighers: Precise weighing in the shortest time
Wipotec OCS high-performance checkweighers check your packed or unpacked products down to the milligram. They permit the precise weighing and documentation of even very light objects such as individual tablets – the exact control of ingredient dosing is an important factor in drug safety. By checking the weight of packed products, the completeness of the pack is reliably checked. For quick, reliable weight determination, the Active Vibration Compensation (AVC) function plays an important role that compensates for interference due to vibration in the area around the weigher by an intelligent algorithm. Within fractions of a second, the weight is determined and objects with the wrong weight reliably detected.
The throughput is further increased by means of multilane applications, which weigh several objects in parallel, with consistent accuracy. The checkweighers can be used as stand-alone solutions or integrated into your existing lines as OEM modules. The system reliably and automatically removes packages or objects with the wrong weight from the product flow. To ensure control over sources of error at all times, combined solutions have separate ejection systems for printing errors and objects with incorrect weights. Ejections are always made into separate, lockable ejection chutes.
To optimize the control of the product flow and the allocation of storage and transport resources, Wipotec integrates efficiency-enhancing weighing and volume-measuring solutions for global CEP (Courier, Express, Parcel) organizations. The systems are valued by leading logistics companies for providing maximized capacity planning and utilization.
Wipotec catchweighers and DWS solutions achieve cost advantages in the following industries:
CEP
Logistic
E-commerce / Warehouse
Efficiency and productivity increases are achieved through the following applications:
Completeness control
Quality inspection
Piece weight and filling quantity control
Chaotic product sequence in automated workflows
